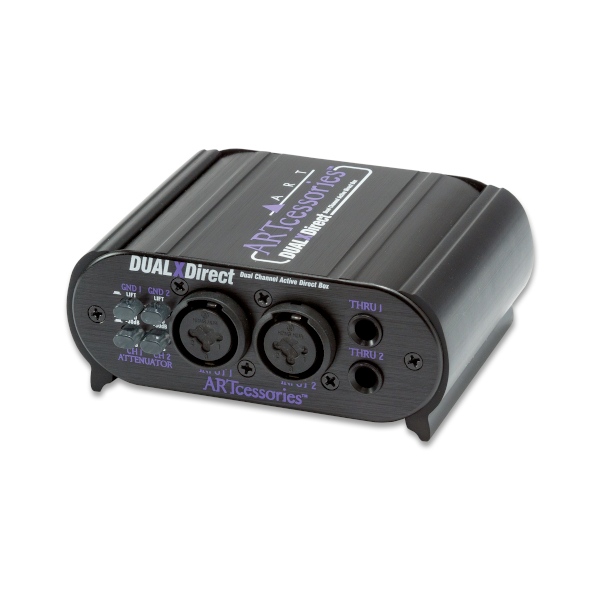

Description

Key Features
Fully Active Design Phantom Voltage or 9v Battery Powered Converts High-Impedance Balanced / Unbalanced Inputs Into 600 ohm Balanced Outputs Switchable input attenuation (0, -20, -40 dB) Switchable low pass filter Switchable phase invert Switchable ground lift (fully isolates inputs from chassis and outputs) ¼-Inch TRS | XLR Combi Jack Inputs Rugged Extruded Aluminum Case
Specifications
Frequency Response 10 Hz – 100 kHz, ± 0.5 dB @ +0 dBu
Total Harmonic Distortion 100 dB (typical)
Channel Separation > 80 dB (typical)
Maximum Input Level +4, +34 dBu
Maximum Output Level +6 dBu (battery powered), +14 dBu (phantom powered)
Input Connections ¼-inch TRS | XLR female balanced / unbalanced (2), 470k Ω
Thru Connections ¼-inch TRS (2)
Output Connections XLR male balanced (2), <600 Ω
Input Attenuation Switchable, (0, -30 dB)
Power Requirements 9V @ 7.5 mA (battery,Alkaline recommended),
18 – 48V DC @ 6.4 mA (phantom power, per channel)
Dimensions 1.85″H x 4.6″W x 3.9″D (47mm x 117mm x 99mm)
Weight 0.84 lbs (0.38 kg)
